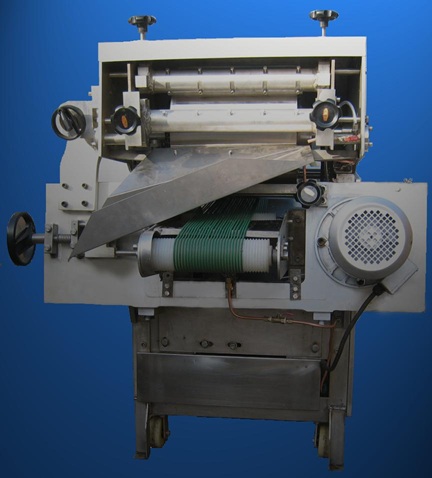

Use range of Fish skin remover
Fish Skin Removing Machine is specially designed for remove the skin of various kind of fish, like catfish, salmon, tilapia , squid, cod, carp etc.
Feature of Fish skinning machine
1, Fish skinning machine use of indirect cooling can precisely control the temperature, and refrigerant is difficult to leak.
2, The principal axis of Fish skinning machine adopts antifriction bearing and important sealing gasket to ensure reliable operation.
3, Material of Fish skin remover: the parts that contact food is made of stainless steel and organic material, and the blade and refrigerator are imported from foreign country.
4, High degree of automation; good quality of removing fish skin, the depth to remove fish skin can be adjusted according to types and size of fish and the freezing temperature also can be adjusted to save energy.
5, Large output, simple operation, during operation, only need 1-2 people.
6.Fully automatic,
7.the biggest advantage of Fish skinning machine: the thickness of the skin can be adjusted to go to big fish
Technical parameters of Fish skin remover
capacity | power | refrigerant | Blade specification | Equipment size |
50-130 pieces/min. | 5.5kw | R22 R404a | 2400*30*0.3mm | 2100*1200*1385mm |
1.This Fish Skin Removing Machine is specially designed for remove the skin of various kind of fish, like catfish, salmon, tilapia , squid, cod, carp etc.
2.The blades can be adjusted to different position so it can be applied to any kind of fish.
3.The roller is specially produced, so the finished fishes can move forward automatically.
4.There is a water pipe, when Fish Skin Removing machine peels the fish, the finied goods can be washed at the same time.
What do we prepare before the equipment is shipped
1. Before sending Fish Skin Removing machine, we will test and adjust, so you can use directly when you get it.
2. Operating video or instruction of Fish skinning machine will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts of Fish Skin Removing machine are supplied from us all the year round.

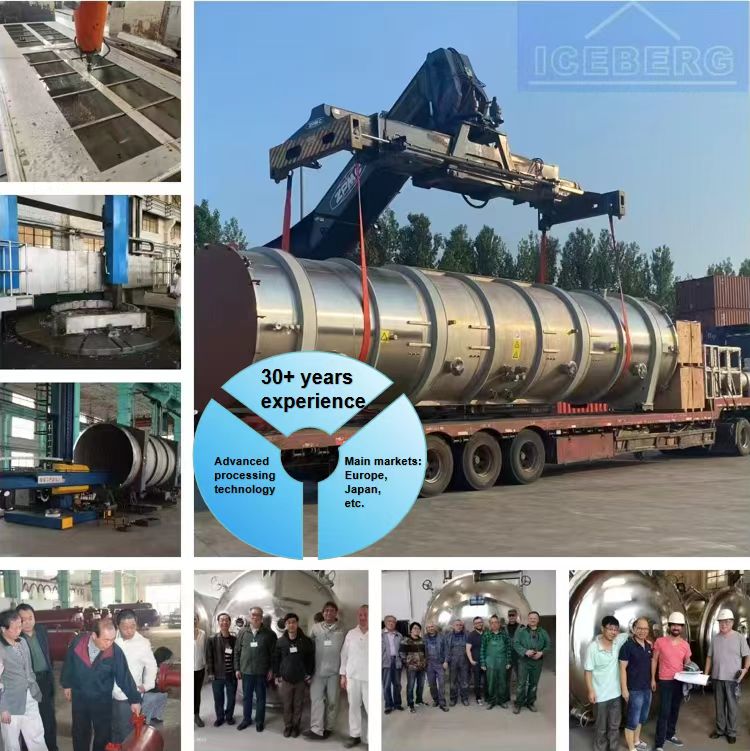

Company profile
Our technology team began developing equipment from 1993 and began selling to the market from 1995. Since2006, we have been exported , and we Dalian Iceberg provide technical designs, production drawings and the whole manufacturing process is supervised by our Dalian Iceberg.
The main export markets are Europe, Central America, Southeast Asia and other countries.

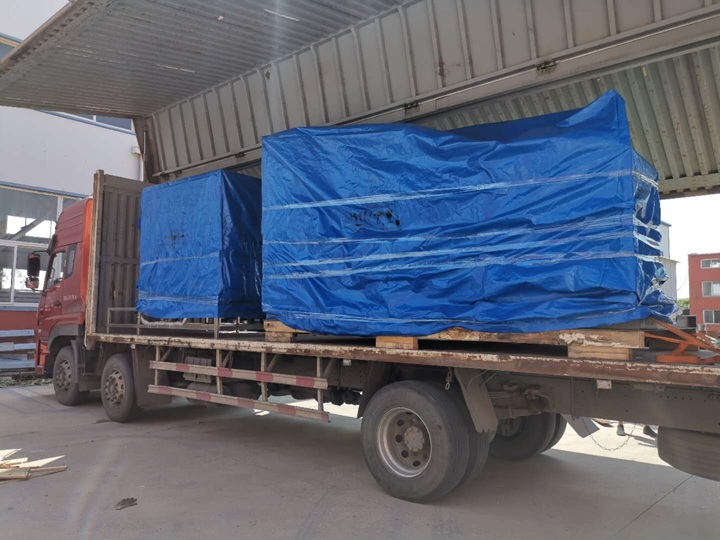

Delivery
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
