Freeze dryer lab equipment
Why you should buy a Freeze dryer lab equipment:
1.Minimize Risk – Small-scale testing prevents large-scale failures.
2.Cut Costs – Catch problems early to avoid expensive fixes later.
3.Enhance Quality – Refine formulations and processes before full production.
4.Speed Up Launch – Resolve issues faster and get to market sooner.
Freeze-dried foods which can be made by 5㎡ small freeze dryer
FD Instant Coffee,FD Vegetables,FD Fruits,FD Instant fruit powder,FD Instant tea,FD Herbs,FD Meats,FD Sea foods,FD Instant soups,FD Milk products,FD Egg products etc.
Technical data of 5㎡ small freeze dryer
| Model No. | A5 | |
| Nominal total loading areas | ㎡ | 5 |
| Loading capacity of raw material | kg/batch | 77 |
| Manner of heating | Radiant heating from two sides of the heating plate | |
| Heating temperature ranges | ℃ | From room temperature to 120 |
| Nominal min. working pressure | Pa | 13 |
| Max.capacity of vapor condenser | kg/h | 65 |
| Evacuation time to reach within 133Pa | min. | 15 |
| Total power consumption of the whole systems | kw | 25 |
Freeze dryer lab equipment which we supply
Size: A0.25, A1.0, A2.0, A5,A10
We can also develop other model of pilot freeze-dryers according to customer's demands
| Item | Unit | Specifications | ||||
| Model No. | A0.25 | A1.0 | A2.0 | A5 | A10 | |
| Nominal total loading areas | ㎡ | 0.25 | 1 | 2 | 5 | 10 |
| Loading capacity of raw material | kg/batch | 3.5 | 11 | 28 | 77 | 154 |
| Manner of heating | Radiant heating from two sides of the heating plate | |||||
| Heating temperature ranges | ℃ | From room temperature to 120 | ||||
| Nominal min. working pressure | Pa | 13 | 20 | |||
| Max.capacity of vapor condenser | kg/h | 3.2 | 10 | 20 | 65 | 130 |
| Evacuation time to reach within 133Pa | min. | 15 | ||||
| Total power consumption of the whole systems | kw | 5 | 8 | 15 | 25 | 52 |

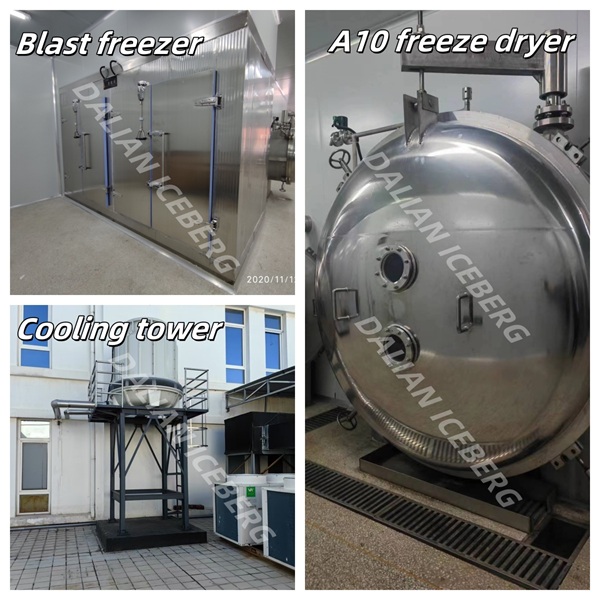

The whole equipment of 5㎡ small freeze dryer which we can supply
5㎡ small freeze dryer+blaster freezer+cooling tower

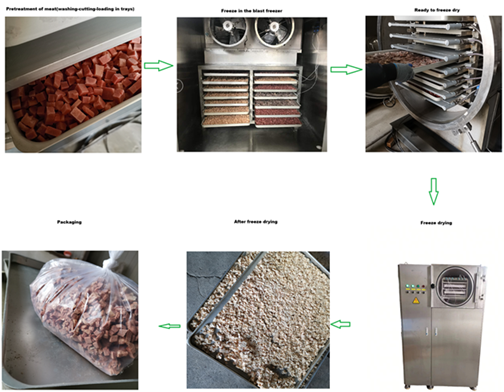

Process of 5㎡ small freeze dryer
Delivery of 5㎡ small freeze dryer
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of Laboratory Freeze Dryer and food individual quick freezing equipment. Laboratory Freeze Dryer researched by the Company with foreign advanced technology has reached the international advanced level. The Company's Laboratory Freeze Dryer scatter about the whole country, and are exported to Europe, Central America, Southeast Asia and other countries.
FAQ
How freeze-drying works of freeze dryer lab equipment?
freeze dryer lab equipment works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
