For what purpose is this freeze-dried food intended?
Consumer Retail: FD Fruits (snacks), FD Instant Coffee, FD Instant Soups
Food Service Industry: FD Vegetables, FD Herbs, FD Meats
Health & Nutrition: FD Culture Products, FD Instant Fruit Powder (smoothie additives)
Emergency & Survival Food: FD Milk Products, FD Meats, FD Egg Products
Process Flow of Freeze-Drying by 100㎡ Vacuum lyophilizer
Prepared frozen material with required shape and size ↓
Tray filling ↓
Loading product trays onto the trolleys ↓
Refreezing ↓
Loading trolleys with product into chambers ↓
Freeze Drying ↓
Dried product unloading ↓
Tray emptying ↓
Post-processing of the dried product (sorting and packaging)
A sample plant of 100㎡ Vacuum lyophilizer
✔ Main Processing Units of Batch lyophilizer
Drying chambers with integrated thermal systems
Alternative de-icing for maximum uptime
✔ Critical Subsystems of Batch lyophilizer
Vacuum systems (evacuation + maintenance)
Closed-loop ammonia refrigeration
✔ Operational Infrastructure of Batch lyophilizer
Industrial control center
✔ Material Flow Components of Batch lyophilizer
Anodized-trays & trolleys
Corrosion-resistant rail system

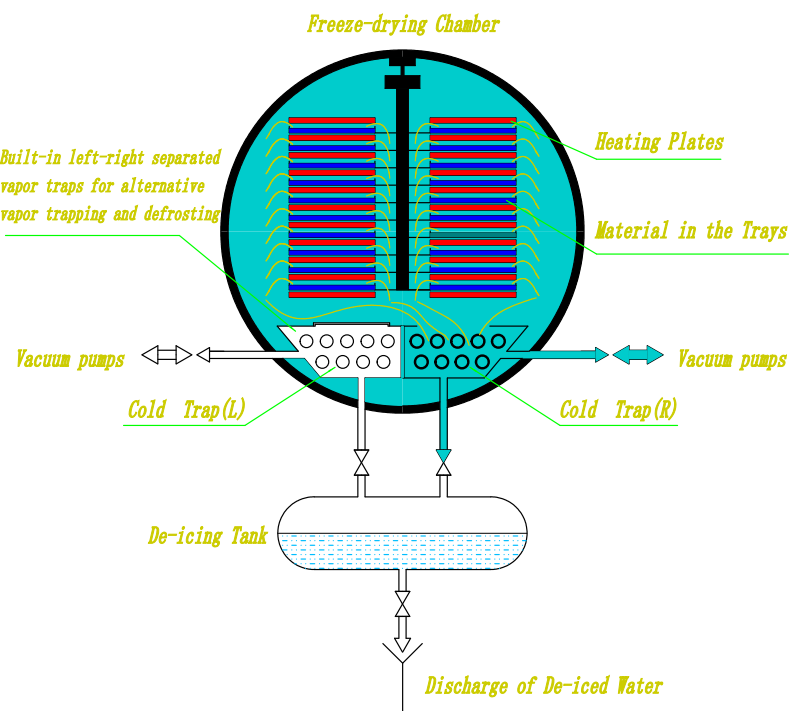

Advantages of Alternative Vapor Trap Systems for 100㎡ Vacuum lyophilizer
1.Right Condenser of 100㎡ Vacuum lyophilizer Ice Melting Phase:
The sealing door plate moves from the left to the right, closing off the right condenser,and the left condenser remains open to the chamber, capturing water vapor from the material.
The de-icing tank applies negative pressure to the closed right condenser, pulling in vapor to melt the collected ice.Melted ice (water) drains through a lower pipeline into the de-icing tank.
2.Left Condenser of 100㎡ Vacuum lyophilizer Ice Melting Phase:
After the right condenser is de-iced, the door plate shifts back to the left, closing the left condenser.
The right condenser reopens to capture vapor, while the left condenser undergoes the same melting process via the de-icing tank.
3.Continuous Alternation of 100㎡ Vacuum lyophilizer:
The system switches between condensers without interrupting the freeze-drying process.
Ice is melted in parallel with sublimation, avoiding downtime.
4.Advantages:
No Additional De-icing Time:
Traditional freeze-drying requires stopping to melt ice, reducing production capacity.
This system of Commercial lyophilizer eliminates idle time, maximizing throughput.
5.Energy Efficiency:
Uses negative pressure vapor from the chamber to melt ice, reducing external energy input.
Automated & Continuous Operation:
The sealing door mechanism automates switching, ensuring seamless transitions between condensers.
Technical data of 100㎡ Vacuum lyophilizer
Energy-smart twin chambers can save 30% energy consumption.
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is a leading manufacturer of Batch lyophilizer and individual quick freezing (IQF) equipment, integrating R&D, production, and engineering services. Our technology of Batch lyophilizer, optimized with global expertise, delivers high efficiency, low operational costs, and rapid project execution—trusted by clients across China and internationally, including to Europe, Central America, Southeast Asia.
FAQ
What is the Freeze-Drying Solutions of Batch lyophilizer by Dalian Iceberg?
✔ Industrial-Scale Batch lyophilizer
Ideal for Batch lyophilizer with continuous drying & efficient de-icing.
Sizes: A50–A200 (expandable options).
✔ Pilot Freeze Dryers
Compact & reliable for R&D or small production.
Standard: A5–A30 | Custom designs supported.
Need a specific configuration? Contact us!
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
