Freeze-Dried Foods is very popular!
-Consumer Retail: FD Fruits (snacks), FD Instant Coffee, FD Instant Soups
-Food Service Industry: FD Vegetables, FD Herbs, FD Meats
-Health & Nutrition: FD Culture Products, FD Instant Fruit Powder (smoothie additives)
-Emergency & Survival Food: FD Milk Products, FD Meats, FD Egg Products
The alternative vapor trap FD system operates through a three-stage process:
-Freezing Phase: The material is rapidly cooled to sub-zero temperatures, solidifying free and bound water to preserve structural integrity.
-Primary Drying (Sublimation): Under high vacuum, controlled heating enables ice sublimation, with vapor captured via desiccants or adsorption traps instead of a conventional condenser.
-Secondary Drying (Desorption): Residual moisture is removed at elevated temperatures, yielding a stable, porous product with minimal thermal degradation.

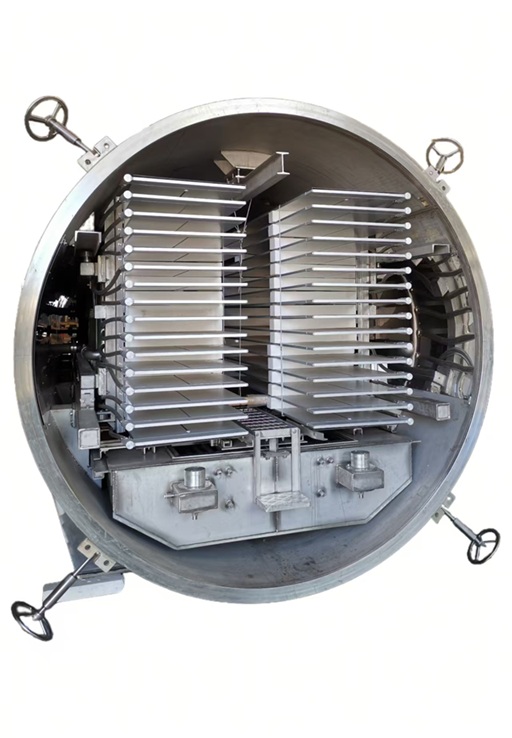

A sample plant of 5280kgs batch vacuum freeze dryer
5280kgs batch vacuum freeze dryer Modular Package Breakdown
Core modules:
Drying Suite: Chambers with pre-installed heating/condensing
Energy Loop: Hot water + ammonia systems + cooling tower
Vacuum Train: Roughing + holding pumps with controls
Automation Hub: Industrial PC + PLC control panels
Materials handling:
Rail-guided trolley system
Customizable tray configurations

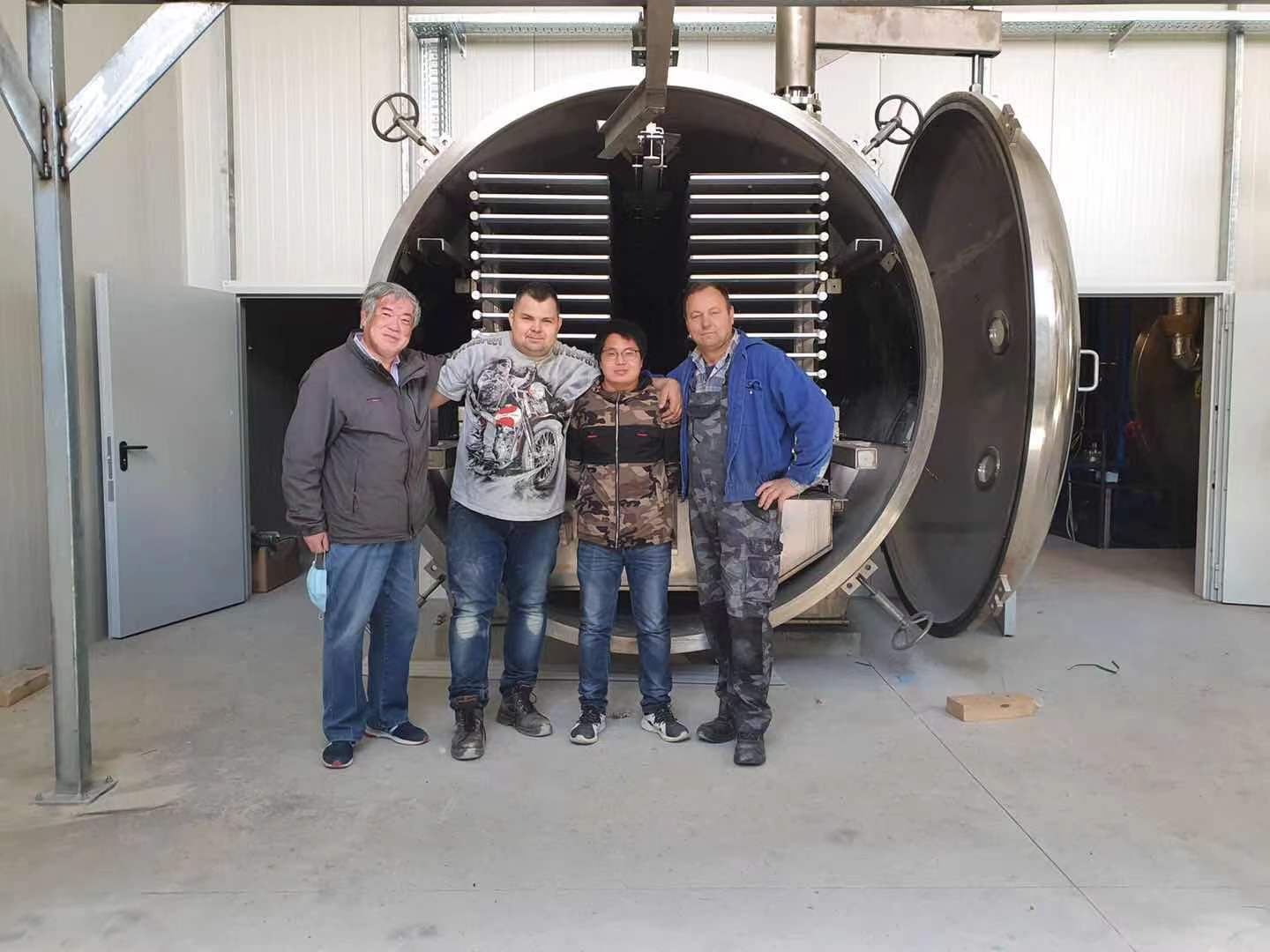

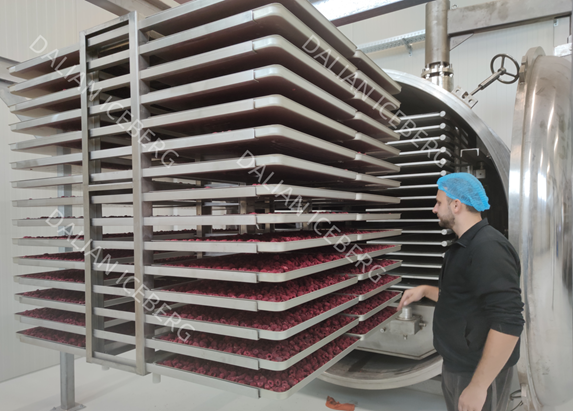

5280kgs batch vacuum freeze dryer in Poland
Technical data of 5280kgs Batch Vacuum Freeze Dryer

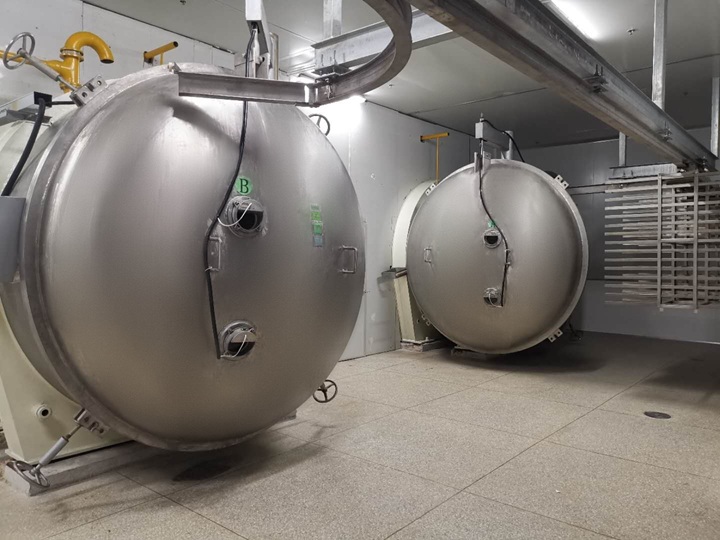

Energy-smart twin chambers of 5280kgs batch vacuum freezer can save 30% energy consumption.
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is a leading manufacturer of Vacuum freeze dryer and individual quick freezing (IQF) equipment, integrating R&D, production, and engineering services. Our technology of Vacuum freeze dryer, optimized with global expertise, delivers high efficiency, low operational costs, and rapid project execution—trusted by clients across China and internationally, including to Europe, Central America, Southeast Asia.
FAQ
What are the Vauum freeze dryer categories?
| Type | Key Feature | Available Sizes |
| Industrial Freeze Dryer | Internal vapor trap + dual condensers | A50, A75, A100, A125, A200 |
| Pilot Freeze Dryer | Single condenser (compact) | A5, A10, A20, A30 |
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
