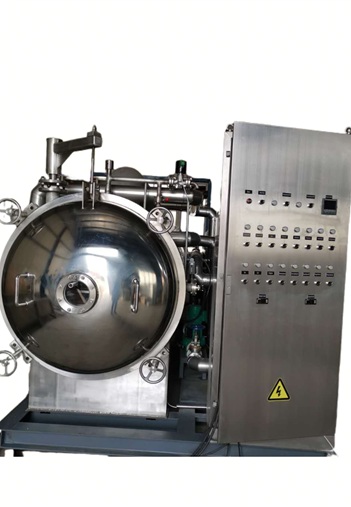

- 5㎡ lab freeze dryer
- >
Given its small capacity, what foods work best for a lab freeze dryer?
-Consumer Retail: FD Fruits (snacks), FD Instant Coffee, FD Instant Soups
-Food Service Industry: FD Vegetables, FD Herbs, FD Meats
-Health & Nutrition: FD Culture Products, FD Instant Fruit Powder (smoothie additives)
-Emergency & Survival Food: FD Milk Products, FD Meats, FD Egg Products
Why you should buy a small lab freeze dryer?
1.A small lab freeze dryer serves as a key tool before pilot and large-scale production, enabling researchers to simulate and optimize lyophilization process parameters such as temperature, vacuum, and drying time under small-scale conditions.
2.With a small lab freeze dryer, the impact of different process conditions on product quality, such as moisture content, active ingredient retention, appearance and structure, can be quickly assessed, thereby reducing risks and costs in large-scale production.
3.A small lab freeze dryer also provide a flexible test platform for new product development, helping companies to verify process feasibility in a short time to ensure that products meet the expected quality standards.
The technical data of Model A series- a small lab freeze dryer
| Specification of small lab freeze dryer | |||||
| Model No. | A0.25 | A1.0 | A2.0 | A5 | A10 |
| Nominal total loading areas(㎡) | 0.25 | 1 | 2 | 5 | 10 |
| Loading capacity of raw material(kg/batch) | 3.5 | 11 | 28 | 77 | 154 |
| Manner of heating | Radiant heating from two sides of the heating plate | ||||
| Heating temperature ranges(℃) | From room temperature to 120 | ||||
| Nominal min. working pressure(Pa) | 13 | 13 | 13 | 13 | 20 |
| Max.capacity of vapor condenser(Kg/h) | 3.2 | 10 | 20 | 65 | 130 |
| Evacuation time to reach within 133Pa(min.) | 15 | ||||
| Total power consumption of the whole systems(kw) | 5 | 8 | 15 | 25 | 52 |
The technical data of Model A series-5㎡ test freeze dryer
| Model No. | A5 |
| Nominal total loading areas(㎡) | 5 |
| Loading capacity of raw material(kg/batch) | 77 |
| Manner of heating | Radiant heating from two sides of the heating plate |
| Heating temperature ranges(℃) | From room temperature to 120 |
| Nominal min. working pressure(Pa) | 13 |
| Max.capacity of vapor condenser(Kg/h) | 65 |
| Evacuation time to reach within 133Pa(min.) | 15 |
| Total power consumption of the whole systems(kw) | 25 |
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is a leading manufacturer of 11 kgs pilot plant and individual quick freezing (IQF) equipment, integrating R&D, production, and engineering services. Our technology, optimized with global expertise, delivers high efficiency, low operational costs, and rapid project execution—trusted by clients across China and internationally, including to Europe, Central America, Southeast Asia
"Quality Driven, Integrity Rooted." We partner with industries worldwide to pioneer sustainable freezing solutions.
Delivery for 5㎡ test freeze dryer
FAQ
What is the pre-delivery process for 5㎡ test freeze dryer?
Pre-Delivery Process for 5㎡ test freeze dryer:
Quality Assurance Testing – 5㎡ test freeze dryer undergo performance checks and adjustments.
User Documentation – Includes setup videos, manuals, and maintenance tips.
Ongoing Technical Support – Remote assistance for operational queries.
Reliable Parts Supply – Critical spare parts of 5㎡ test freeze dryer stocked for quick replacement.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
