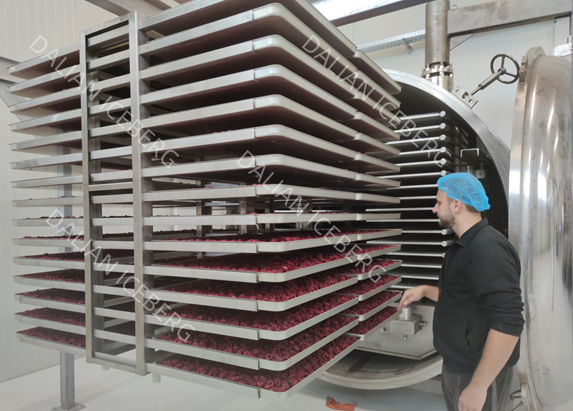

Alternative type vapor trap freeze dry machine
Key Advantages of Alternative type vapor trap freeze dry machine
✔ No condenser defrosting needed (if using desiccants/adsorbents).
✔ Energy-efficient (no need for ultra-low condenser temps).
✔ Compact design (useful for big-scale or industrialized applications).
Freeze dry machine using alternative vapor trap,This kind of vapor trap is built into the bottom of the drying chamber and is equipped with a double steam condenser for continuous deicing (CDI).

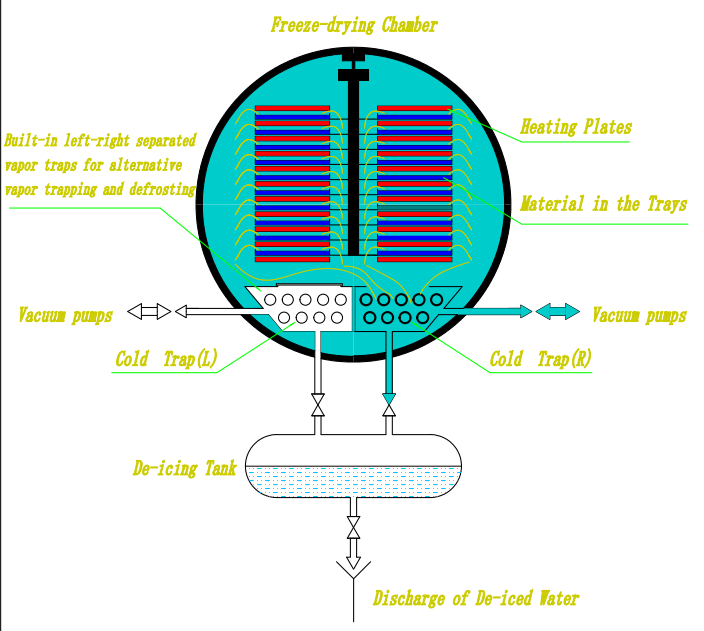

During the whole freeze-drying process, When the right condenser in the chamber begins to melt ice, the sealing door plate of the condenser in the chamber moves from the left side to the right side to close the right condenser, and the left condenser communicates with the chamber for water vapor capture. The de-icing tank connects the negative pressure water vapor on the right side of the chamber into the right condenser which has been closed by the sealed door, and melts the thin ice collected on the bundle into water, which flows into the de-icing tank through the lower part of the same pipeline. After the right condenser completes the ice melting, it turns to the left side to achieve the alternating ice melting of the two condensers. During the whole freeze-drying process, no additional time is required to melt the ice individually, which helps to increase the capacity of production.
Table1. Standard type-Model A series Alternative type vapor trap freeze dry machine
| Standard type for industrialized production | ||||||
| Model | A25 | A50 | A75 | A100 | A125 | A200 |
| Loading capacity (kgs/batch) | 330 | 660 | 990 | 1320 | 1650 | 2640 |
| Nominal total loading area of heating plates(㎡) | 25 | 50 | 75 | 100 | 125 | 200 |
| Max.capacity of vapor condensing (kg/h) | 57.5 | 115 | 173 | 230 | 280 | 450 |
| Operating temperature of heating plates (℃) | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
| Nominal working pressure (Pa) | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
| Evacuating time to reach within 133 Pa with empty loading (min.) | 15~20 | |||||
| Required peak cooling capacity at -40℃(kw) | 45 | 85 | 132 | 180 | 217 | 350 |
| Max.vapor consumption of 0.7 MPa (kg/h) | 70 | 135 | 200 | 240 | 400 | 650 |
| Installation power (KW) | 30 | 55 | 68 | 86 | 55 | 80 |
If you buy it with twin chamber sharing with one set of auxiliary equipment of Food and beverage industries of freeze dryer , which can save 30% energy consumption during whole Food and beverage industries of freeze dryer process.
Table2. Model A series Alternative type vapor trap freeze dry machine
| Standard type for industrialized production | ||||||
| Model | 2XA25 | 2XA50 | 2XA75 | 2XA100 | 2XA125 | 2XA200 |
| Loading capacity (kgs/batch) | 660 | 1320 | 1980 | 2640 | 3300 | 5280 |
| Nominal total loading area of heating plates(㎡) | 50 | 100 | 150 | 200 | 250 | 400 |
| Max.capacity of vapor condensing (kg/h) | 115 | 230 | 350 | 460 | 560 | 900 |
| Operating temperature of heating plates (℃) | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
| Nominal working pressure (Pa) | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
| Evacuating time to reach within 133 Pa with empty loading (min.) | 15~20 | |||||
| Required peak cooling capacity at -40℃(kw) | 80 | 158 | 240 | 320 | 360 | 650 |
| Max.vapor consumption of 0.7 MPa (kg/h) | 120 | 220 | 360 | 480 | 700 | 1150 |
| Installation power (KW) | 50 | 89 | 90 | 115 | 115 | 165 |
Other auxiliary systems of freeze dry machine using alternative vapor trap
1)Drying chambers
2). Hot water system
3). Vacuum system
4). Ammonia circulation system
5). Alternative de-icing system
6). Pneumatic system
7). Cooling system (cooling tower)
8). Control systems
9). Freezing tunnels
10). Rail system
11). Trolleys
12). Trays
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of Alternative vapor trap freeze dry machine and food individual quick freezing equipment. Alternative vapor trap freeze dry machine researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and are exported to Central and South America, Southeast Asia, Europe.
The Company has the strong management capacity of set engineering design and installation of freeze dry machine using alternative vapor trap.In these years, 200 ㎡ freeze dryer undertaken by the Company all have been in good quality,with short construction period and low integrated cost, thus winning the users' praise and recognition.
Our main clients of Batch vacuum freeze lyophilizer:MEIJI FOODS ,AJINOMOTO,EIYOH FOODS ,C.Y. FOODS ,Fruitful etc.
Delivery freeze dry machine using alternative vapor trap
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
