Vacuum freeze dryer to peru
What Makes Our Vacuum freeze dryer to peru Stand Out?
Vacuum freeze dryer to peru-Proven in the industry – Trusted by Meiji, Ajinomoto, Eiyoh, and more.
Vacuum freeze dryer to peru-Wide application – Handles everything from delicate bird's nest to robust coffee beans.
Vacuum freeze dryer to peru-Energy-efficient – Saves 30% power with smart combination-type technology.
Vacuum freeze dryer to peru-Globally adopted – Successfully deployed across Europe, Central America, and Asia.
Vacuum freeze dryer to peru-Built for food businesses that prioritize quality & cost savings.
The Characters of the Freeze-Dried Product which made by Batch freeze dryer to peru
Frozen products are dried under vacuum, ensuring that the inherent solvents in the product (i.e. water) are removed as vapor. This preserves the overall product structure and size, as well as all nutrients, flavors, and colors.
The technical data of Model A series- Batch freeze dryer to Peru
| Specification | |
| Model | 2XA125 |
| Loading capacity (kgs/batch) | 3300 |
| Nominal total loading area of heating plates(㎡) | 250 |
| Max.capacity of vapor condensing (kg/h) | 560 |
| Operating temperature of heating plates (℃) | 30~120 |
| Nominal working pressure (Pa) | 30~120 |
| Evacuating time to reach within 133 Pa with empty loading (min.) | 15 |
| Required peak cooling capacity at -40℃(kw) | 360 |
| Max.vapor consumption of 0.7 MPa (kg/h) | 700 |
| Installation power (KW) | 115 |
The supply scope of Batch freeze dryer to Peru
"No Surprises" Pricing Breakdown
What You Pay For = What You Get
| System | Include? | Key benifit |
| Drying chambers | YES | Pre-assembled, leak-tested |
| Vacuum system | YES | Two pumps for 24/7 operation |
| De-icing system | YES | No shutdowns for de-icing |
| Trays&Trolleys | YES | Anodized 100+ standard trays |
| Total | All above | Ready for production one 1 day |
Step-by-Step Process Map of Batch freeze dryer to Peru
From Raw Material to Finished Product – We Supply It All:
🔄 Loading (trolleys + rails)
❄️ Pre-Freezing (tunnels)
🔥 Drying (chambers + heating plates)
🌀 Condensing (integrated vapor traps)
📊 Control (automated HMI panels)
📦 Unloading (same trolley system)
Infrastructure: Cooling towers, pipes, valves, and power – all included!
Company profile
Preserving Nature’s Goodness, Powering Industry Growth
At Dalian Iceberg, we engineer Vacuum freeze dryer to peru and IQF systems that bridge science and sustainability. By merging global innovations with localized service, we empower food processors to:
✔ Extend shelf life without additives
✔ Cut waste with precision freezing
✔ Scale efficiently with modular designs
FAQ
Where is this freeze-dried food for?
-Outdoor adventure: freeze-dried instant soup, freeze-dried meat
-Baby food: freeze-dried fruit powder, freeze-dried vegetable granules
-Catering: freeze-dried spices, freeze-dried decorative flowers
-Military emergency: freeze-dried staple food, freeze-dried protein
-Health products: freeze-dried Ganoderma lucidum powder, freeze-dried enzyme
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.

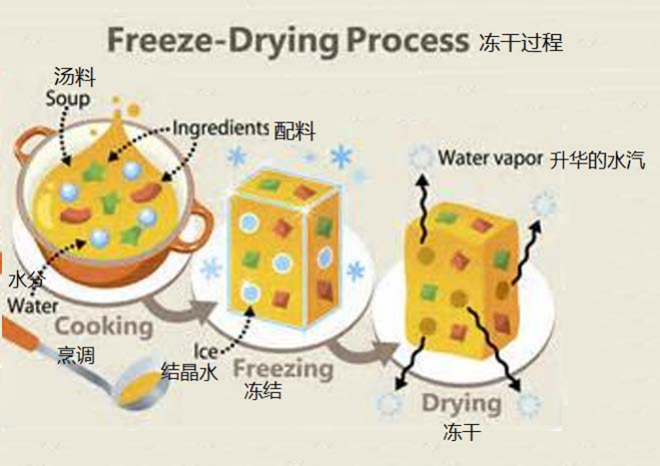

Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
