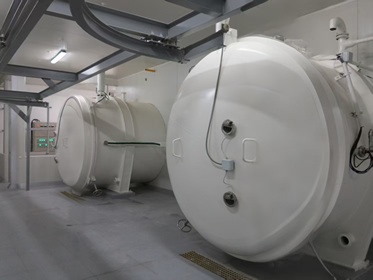

Vacuum freeze dryer to Poland
Key Advantages of Alternative Vapor Trap Systems of Batch freeze dryer to Poland
✔ No condenser defrosting needed (if using desiccants/adsorbents).
✔ Energy-efficient (no need for ultra-low condenser temps).
✔ Compact design (useful for big-scale or industrialized applications).
Model A series Vacuum freeze dryer to Poland
| Item | Specification |
| Model | 2XA200 |
| Loading capacity of raw material | 5280kgs/batch |
| Nominal total loading areas | 400㎡ |
| Manner of heating | Radiant heating from two sides of the heating plate |
| Heating temperature ranges | From room temperature to 130℃ |
| Nominal working pressure ranges | 30~120Pa |
| Max.capacity of vapor condenser | 900 kg/h |
| Evacuation time to reach within 133Pa | 15~20min |
| Steam consumption at peak steam pressure of 0.7Mpa | 1150Kg/h |
| Requested pealing cooling capacity at -40℃ | 650kw |
| Total power consumption of the whole systems | 165kw |
| Tray material | Aluminum |
| Tray quantity | 60 pcs/trolley |
| Tray size | L687*W568*H30 or L720*W568*H30 |
| Trolley material | Stainless steel |
| Trolley quantity | 8 trolleys/chamber/batch |
Modular Package Breakdown of Vacuum freeze dryer to Poland
-Core moudles
Drying Suite: Chambers with pre-installed heating/condensing
Energy Loop: Hot water + ammonia systems + cooling tower
Vacuum Train: Roughing + holding pumps with controls
Automation Hub: Industrial PC + PLC control panels
-Material handling
Rail-guided trolley system
Customizable tray configurations
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of the freeze dryer to Poland and food individual quick freezing equipment.Vacuum freeze dryer to Poland researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and are exported to Central and South America, Southeast Asia, Europe.
The Company has the strong management capacity of set engineering design and installation of Vacuum freeze dryer .In these years, Vacuum freeze dryer undertaken by the Company all have been in good quality,with short construction period and low integrated cost, thus winning the users' praise and recognition.
Our main clients of Batch vacuum freeze lyophilizer:MEIJI FOODS ,AJINOMOTO,EIYOH FOODS ,C.Y. FOODS ,Fruitful etc.

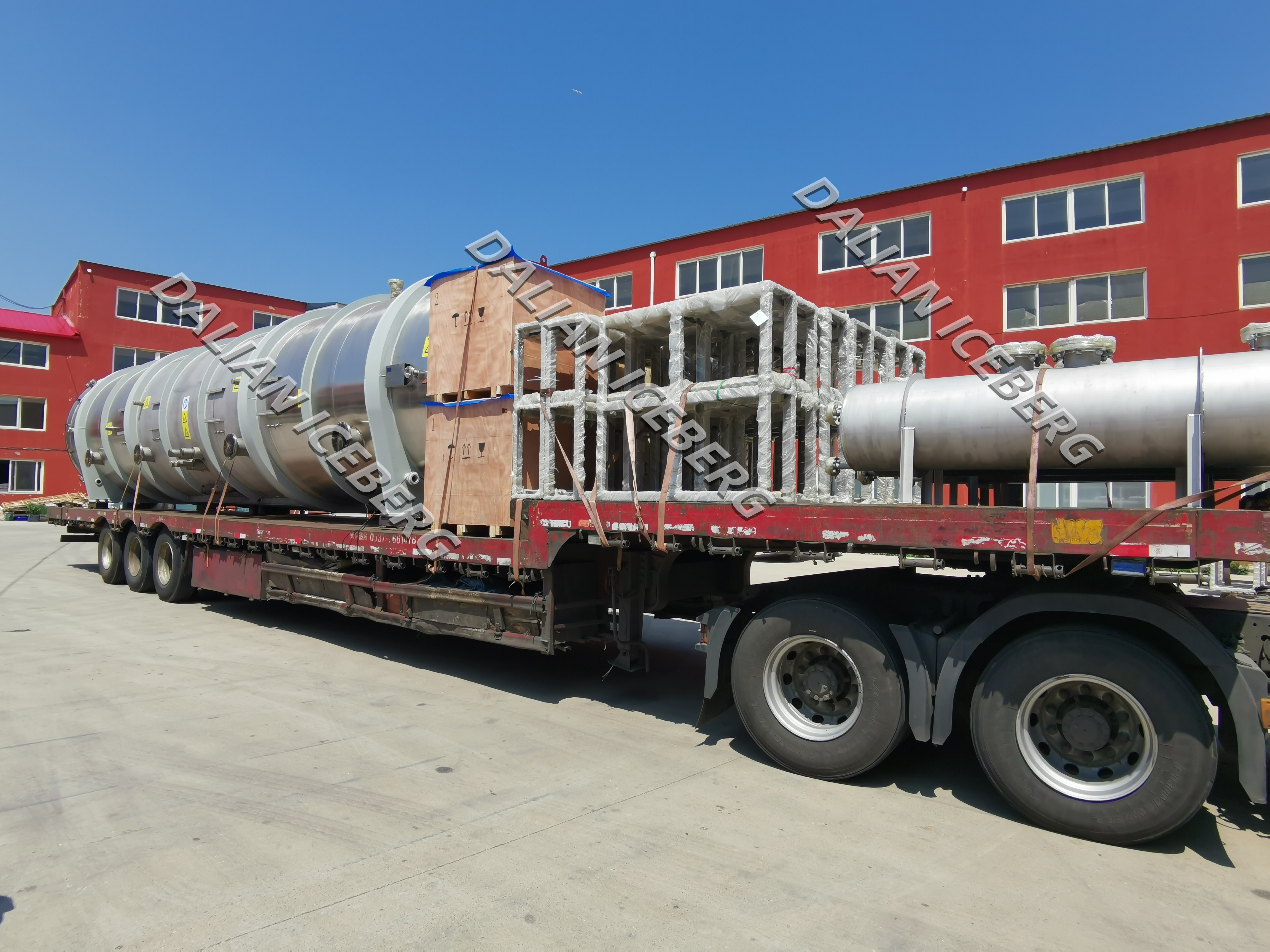

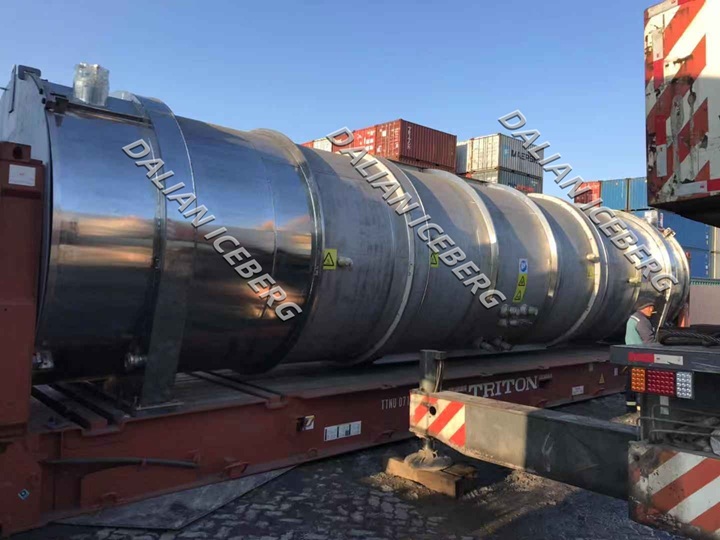

Delivery Batch freeze dryer to Poland
FAQ
Tailored Freeze-Drying for Your Sector
Whether you process seafood, herbs, or ready-to-eat meals, Dalian Iceberg's customizable solutions address:
Capacity: 1–100 tons/day systems
Compliance: Meets EU/Japan export standards
Automation: AI-driven temperature control
Request a feasibility study today.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
