Batch Pet Food lyophilizer

Batch pet food lyophilizer, we have continuous with brands such as MEIJI FOODS, AJINOMOTO, EIYOH FOODS, C.Y. FOODS, Fruitful etc. Batch pet food lyophilizerare mainly used in food industry, such as vegetables, fruits, seafood, condiments, coffee, bird's nest and so on. Batch pet food lyophilizer, which you bought combination type for industrialized production can save 30% energy in whole freeze drying process Batch pet food lyophilizer are Europe, Central America, Southeast Asia and other countries. 125㎡ & 200㎡ Batch pet food lyophilizer is our most popular equipment.

General Principles of Pet food vacuum freeze dryer

Pet food vacuum freeze dryer is to pre-freeze substances containing a large amount of water (such as: fruits, vegetables, meat products, etc.) to crystallize the free water in the substances, and then sublime the crystal water in the substance under high vacuum conditions, and then remove part of the adsorbed water in the substance after the sublimation of the crystal water is completed, and finally obtain a dry product with a residual water content of about 1-4%.

The most popular Pet food vacuum freeze dryer are125㎡ & 200㎡,See the following techinical details

Item	Unit	Specifications/Description	Specifications/Description
Model		A125	A200
Nominal total loading areas	㎡	125	200
Loading capacity of raw material	kg/batch	1650	2640
Manner of heating		Radiant heating from two sides of the heating plate	Radiant heating from two sides of the heating plate
Dimensions of single tray	mm	L 687 * W 568 * H 30~40 or L 720 * W 568 * H 30~40	L 687 * W 568 * H 30~40 or L 720 * W 568 * H 30~40
Heating temperature ranges	℃	From room temperature to 130	From room temperature to 130
Nominal working pressure ranges	Pa	30~120	30~120
Max.capacity of vapor condenser	Kg/h	280	450
Evacuation time to reach within 133Pa	min	15~20	15~20
Steam consumption at peak steam pressure of 0.7Mpa	Kg/h	400	650
Requested pealing cooling capacity at -40℃	KW	217	350
Total power consumption of the whole systems	KW	55	80
The temperature of de-icing system	℃	15~25	15~25
Tray material		Aluminum	Aluminum
Tray dimension	mm	67856835mm or 72056835	67856835mm or 72056835
Tray quantities	Pcs/batch	300	480
Trolley material		Stainless steel	Stainless steel
Trolley quantities	Pcs/batch	5	8

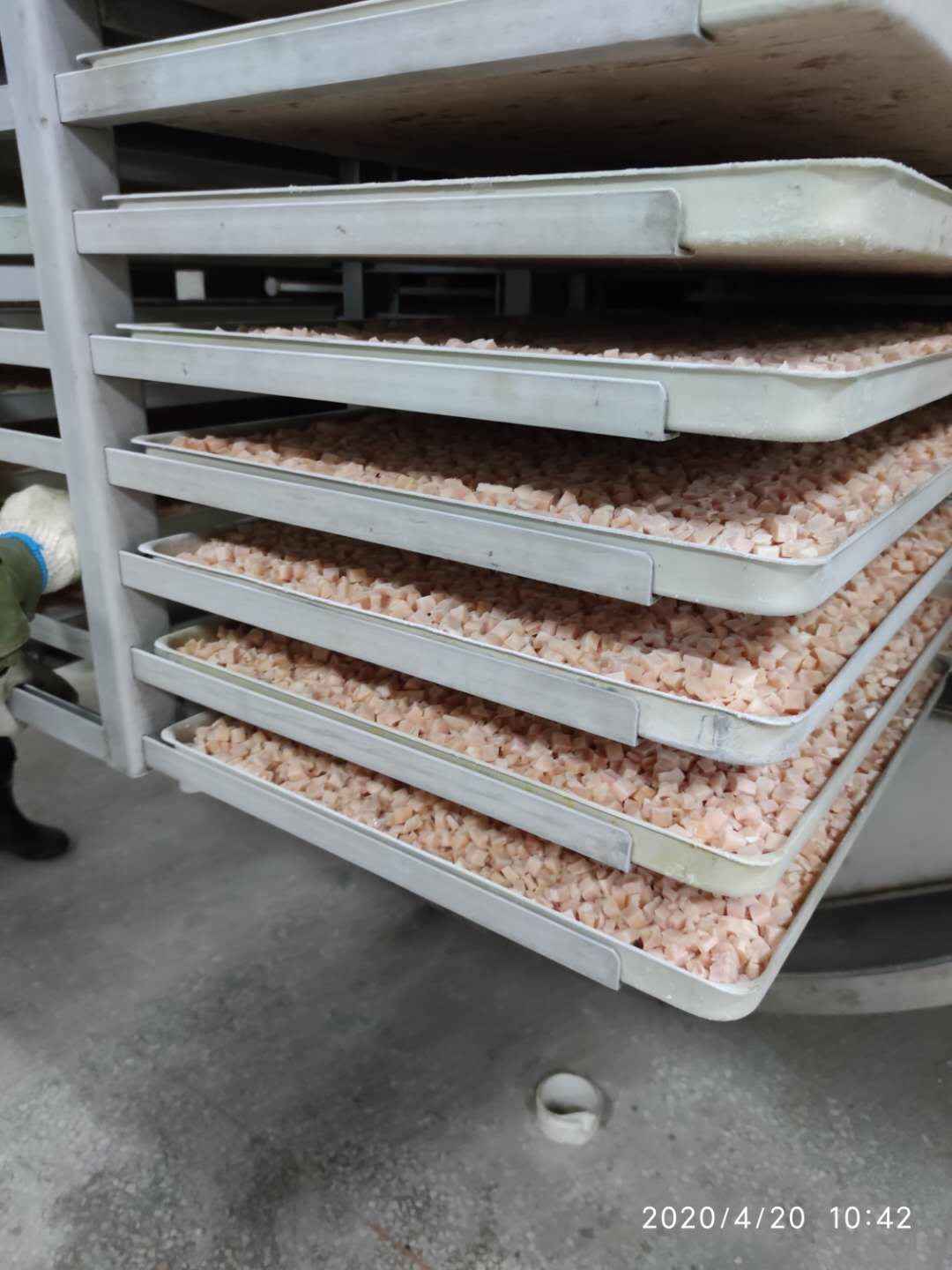

Pet food which made by Pet food vacuum freeze dryer

Pet food vacuum freeze dryer

Company profile

Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of Pet Food lyophilizer and food individual quick freezing equipment. Pet Food lyophilizer researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and are exported to Central and South America, Southeast Asia, Europe.

pet Food lyophilizer

FAQ

Why freeze dry?

Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants.

Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years.

Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food.

Sustainable: Freeze-drying reduces food waste and transportation and storage costs.

Tags:

Why freeze dry?

Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
How freeze-drying works?

Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
What is the type and size of our freeze drying equipment?

We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
How long is the production time of the equipment?

It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
How soon can we respond to the customer's inquiry?

Within 24 hours
What is the scope of supply of freeze-drying equipment?

The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
