What is the FD food used for ?
-Consumer Retail: FD Fruits (snacks), FD Instant Coffee, FD Instant Soups
-Food Service Industry: FD Vegetables, FD Herbs, FD Meats
-Health & Nutrition: FD Culture Products, FD Instant Fruit Powder (smoothie additives)
-Emergency & Survival Food: FD Milk Products, FD Meats, FD Egg Products
Looking for Reliable batch freeze dryer?
Q: Who uses your batch freeze dryer?
A: Major food producers like MEIJI, AJINOMOTO, and Fruitful trust our technology.
Q: What products can be freeze-dried?
A: Almost anything! Fruits, vegetables, seafood, coffee, pet food, and even delicate items like bird’s nest.
Q: What's your most efficient batch freeze dryer model?
A: Model A125 ,A200 – especially with twin chambers, saving 30% energy.
Q: Where do you export?
A: Worldwide, with strong demand in Europe, Central America, and Southeast Asia.
Q: Why choose your company?
A: 30+ years of expertise – we handle design, engineering, and quality control in-house.
A sample plant of batch freeze dryer with two doors
Modular Package Breakdown of batch freeze dryer
-CORE MODULES

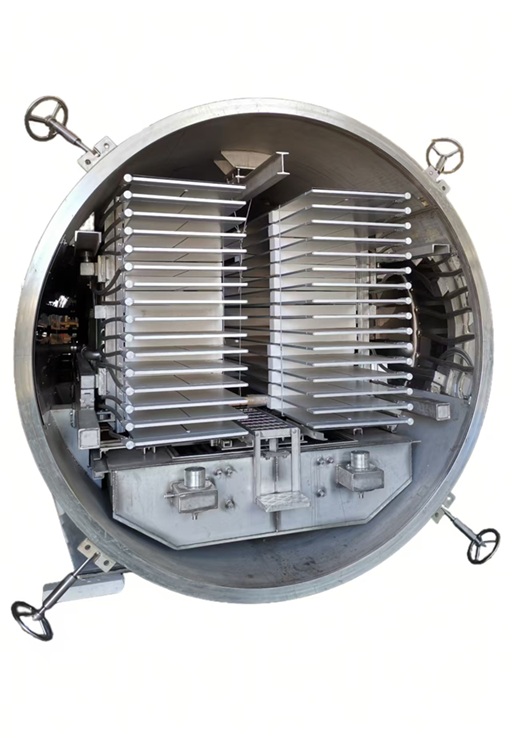

Drying Suite: Chambers with pre-installed heating/condensing
Energy Loop: Hot water + ammonia systems + cooling tower
Vacuum Train: Roughing + holding pumps with controls
Automation Hub: Industrial PC + PLC control panels
-MATERIALS HANDLING
Rail-guided trolley system
Customizable tray configurations

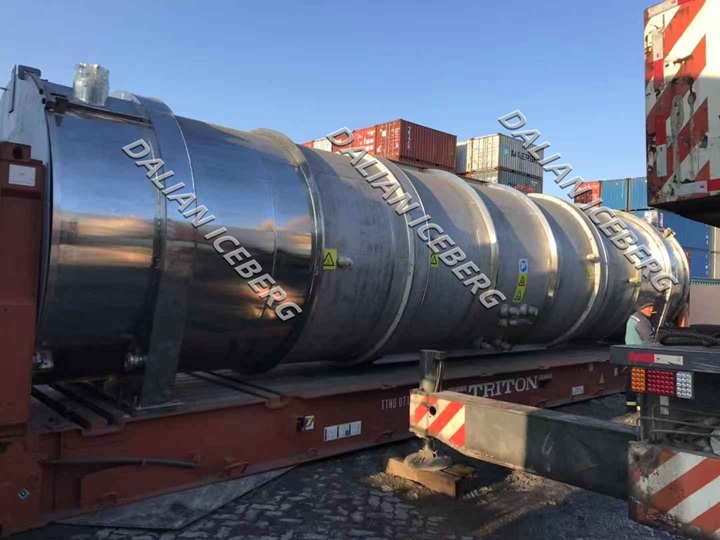

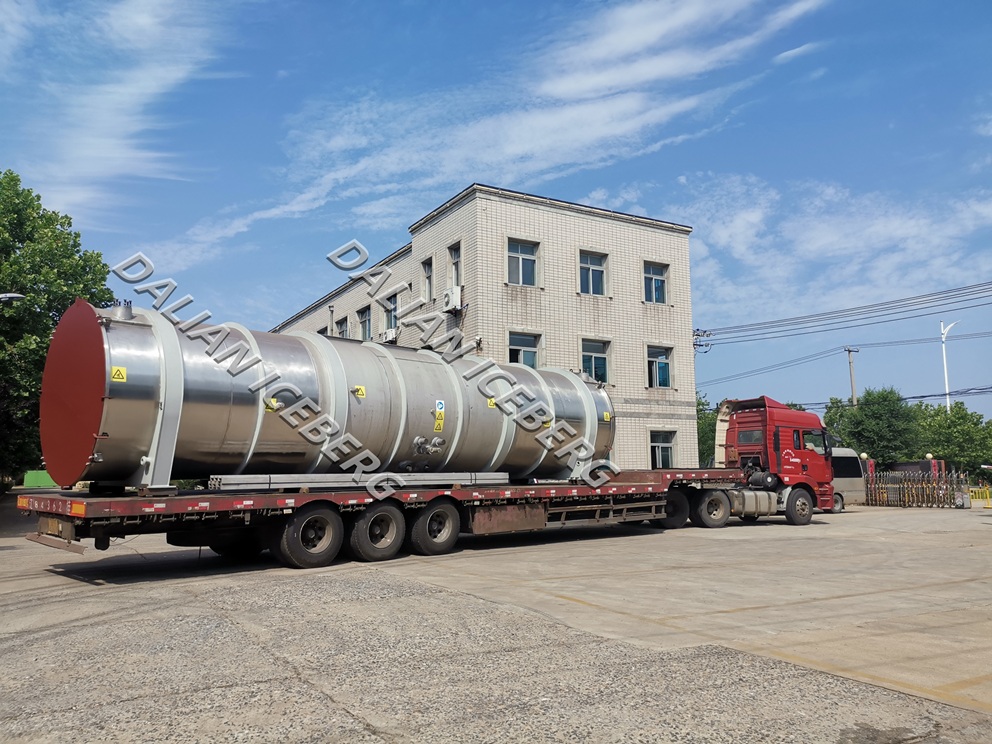

The technical data of Model A series- Vacuum freeze dryer to Japan
| Specification | |
| Model | 2XA125 |
| Loading capacity (kgs/batch) | 3300 |
| Nominal total loading area of heating plates(㎡) | 250 |
| Max.capacity of vapor condensing (kg/h) | 560 |
| Operating temperature of heating plates (℃) | 30~120 |
| Nominal working pressure (Pa) | 30~120 |
| Evacuating time to reach within 133 Pa with empty loading (min.) | 15~20 |
| Required peak cooling capacity at -40℃(kw) | 360 |
| Max.vapor consumption of 0.7 MPa (kg/h) | 700 |
| Installation power (KW) | 115 |
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is a premier manufacturer specializing in batch freeze dryer and Individual Quick Freezing (IQF) equipment. As an integrated leader in R&D, production, and we combine cutting-edge technology with global expertise to deliver:
✅ High-efficiency fruit vacuum drying & IQF systems
✅ Low operational costs with energy-optimized designs
✅ Fast project execution for seamless global deployment
✅ Main Japanese customer:MEIJI, AJINOMOTO,EIYOH etc.

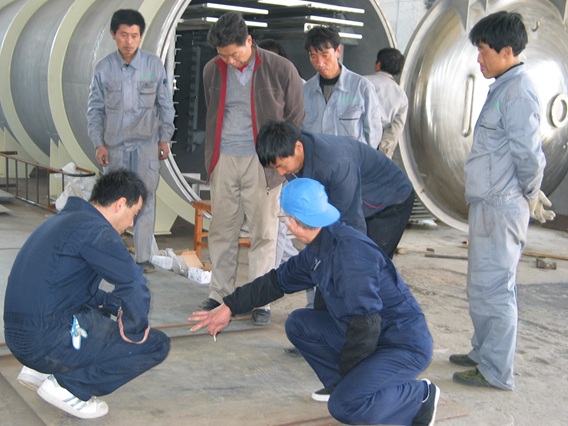

Factory Acceptance Testing by MEIJI
FAQ
What is the Freeze-Drying Solutions by Dalian Iceberg?
✔ Industrial-Scale Freeze Dryers
Ideal for large batches with continuous drying & efficient de-icing.
Sizes: A50–A200 (expandable options).
✔ Pilot Freeze Dryers
Compact & reliable for R&D or small production.
Standard: A5–A30 | Custom designs supported.
Need a specific configuration? Contact us!
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
