Looking for Reliable Freeze-Drying Equipment?
Q: Who uses your freeze dryers?
A: Major food producers like MEIJI, AJINOMOTO, and Fruitful trust our technology.
Q: What products can be freeze-dried?
A: Almost anything! Fruits, vegetables, seafood, coffee, pet food, and even delicate items like bird's nest.
Q: What’s your most efficient model?
A: The A125 (1,500 kg/batch) – especially with twin chambers, saving 30% energy.
Q: Where do you export?
A: Worldwide, with strong demand in Europe, Central America, and Southeast Asia.
Q: Why choose your company?
A: 30+ years of expertise – we handle design, engineering, and quality control in-house.
Freeze-Dried Foods That Will Blow Your Mind!
Freeze dried fruit
Freeze dried vegetable
Freeze dried sea food
Freeze dried powder

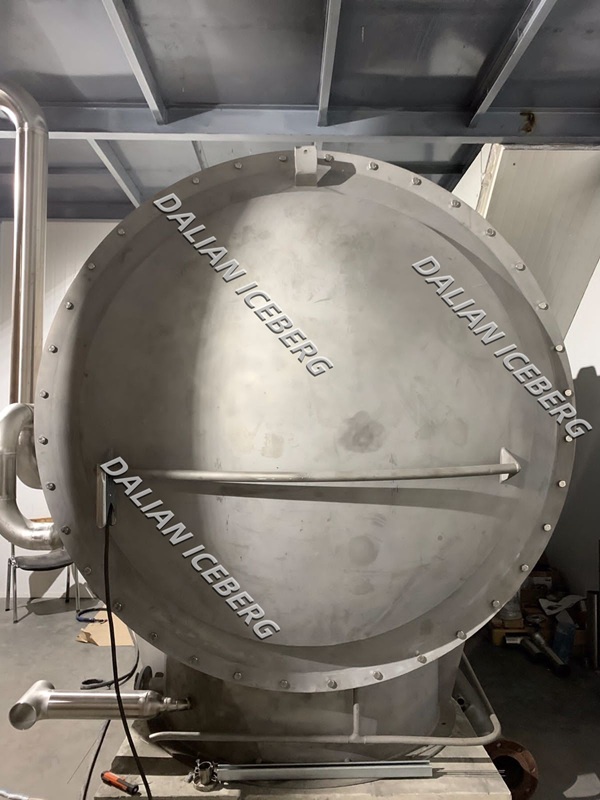

The technical data of Model A series-Vacuum freeze dryer to Ukraine
| Item | Specification of Vacuum freeze dryer to Ukraine |
| Model NO. | A50 |
| Nominal total loading areas(㎡) | 50 |
| Loading capacity of raw material(kg/h) | 660 |
| Manner of heating | Radiant heating from two sides of the heating plate |
| Heating temperature ranges(℃) | From room temperature to 120 |
| Nominal min. working pressure(Pa) | 30~120 |
| Max.capacity of vapor condenser(kg/h) | 115 |
| Evacuation time to reach within 133Pa(min.) | 15 |
| Required peak cooling capacity at -40℃(kw) | 85 |
| Max.vapor consumption of 0.7 MPa (kg/h) | 135 |
| Installation power (KW) | 55 |
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of the lab scale freeze dryer and food individual quick freezing equipment. The lab scale freeze dryer researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and even are exported to Japan.
The Company has the strong management capacity of set engineering design and installation.In these years, small freeze dryer undertaken by the Company all have been in good quality,with short construction period and low integrated cost, thus winning the users' praise and recognition.

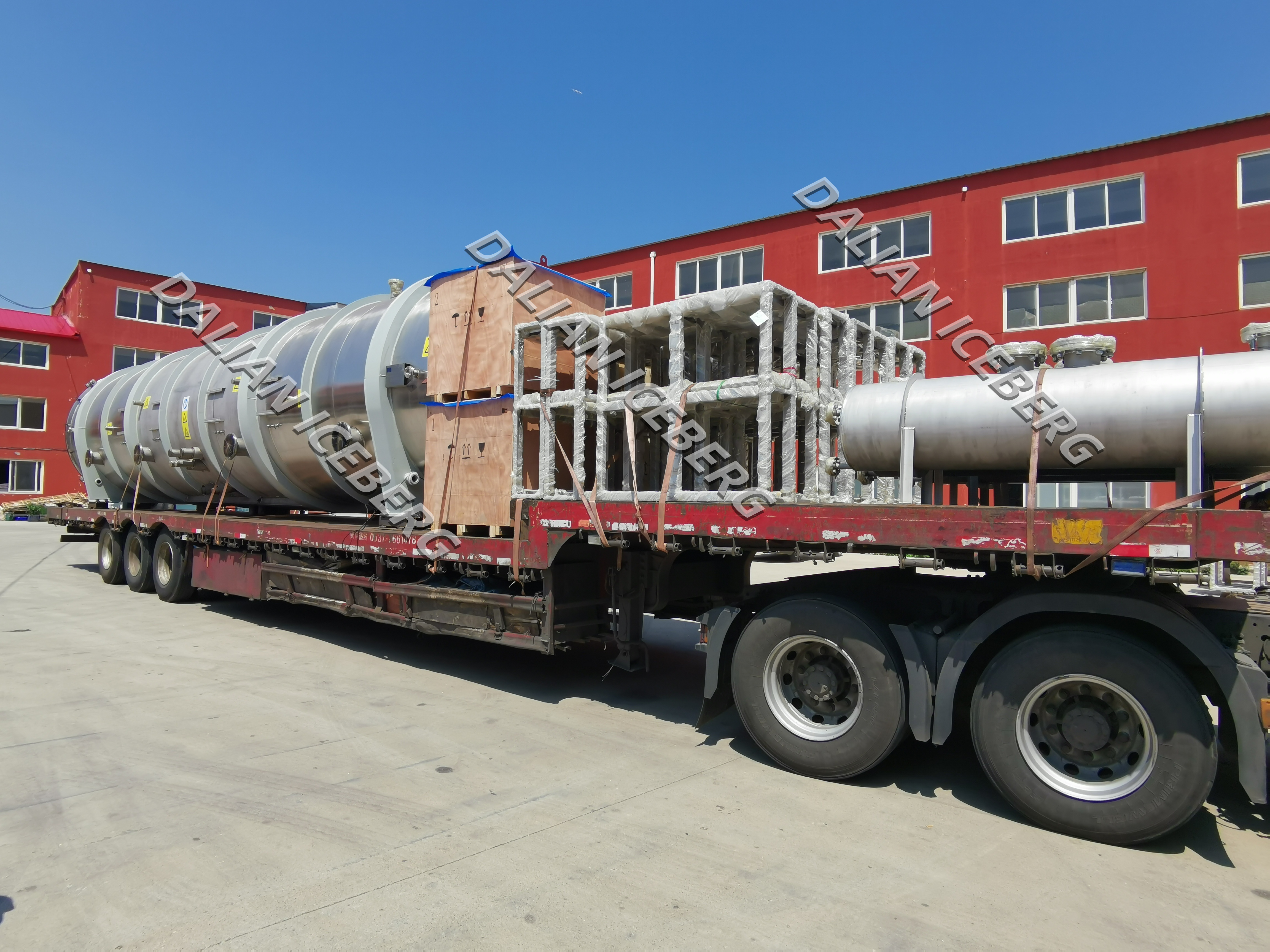

Delivery for Vacuum freeze dryer to Ukraine
FAQ
What is the scope of supply of Vacuum freeze dryer to Ukraine?
1) Drying chambers
2). Hot water system
3). Vacuum system with units for initial evacuation and vacuum maintaining
4). Ammonia circulation system
5). Alternative de-icing system
6). Pneumatic system
7). Cooling system (cooling tower)
8). Control center with control panels and computer
9). Freezing tunnels
10). Rail system
11). Trolleys
12). Trays
13). Connecting pipes, pipe fittings and valves for systems
14). Cables, wires, shielded control lines, etc. for all systems
We can also add other equipment according to customer's request.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
