CE certificate fruit freeze drying equipment

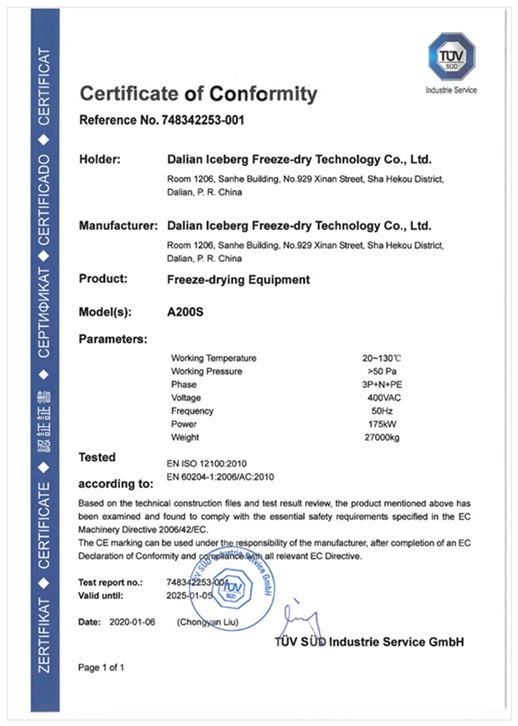

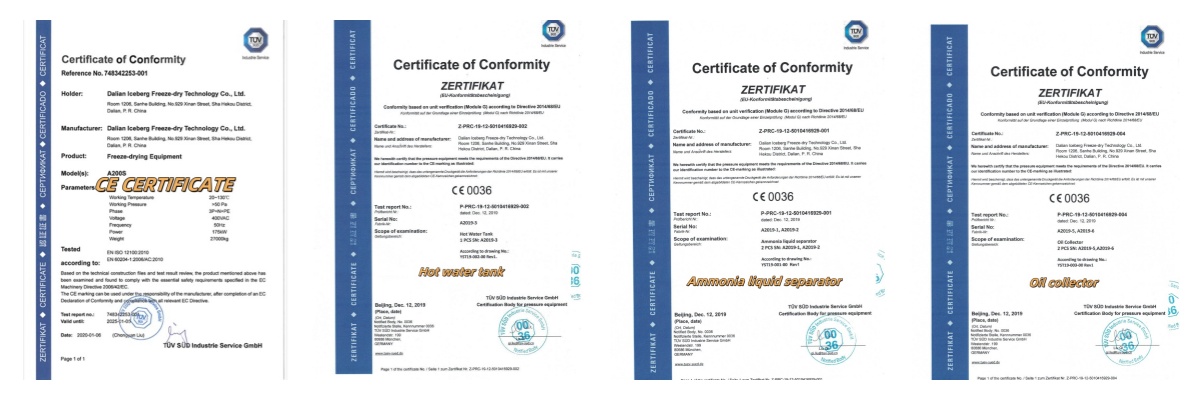

CE certificate for fruit freeze drying equipment which we got
-Hot want tank,Directive 2014/68/eu for pressure equipment,Module G
-Ammonia separator,Directive 2014/68/eu for pressure equipment,Module G
-Oil collector,Directive 2014/68/eu for pressure equipment,Module G
Technical specification of freeze-drying equipment for europe
| Item | Specifications/Description |
| Model number | A200 |
| Nominal total loading areas(㎡) | 200 |
| Loading capacity of raw material(kg/batch) | 2640 |
| Manner of heating | Radiant heating from two sides of the heating plate |
| Dimensions of single tray(mm) | L 687 * W 568 * H 30~40 or L 720 * W 568 * H 30~40 |
| Heating temperature ranges(℃) | From room temperature to 130 |
| Nominal working pressure ranges(Pa) | 30~120 |
| Max.capacity of vapor condenser(kg/h) | 450 |
| Evacuation time to reach within 133Pa(min.) | 15~20 |
| Steam consumption at peak steam pressure of 0.7Mpa(kg/h) | 650 |
| Requested pealing cooling capacity at -40℃(kw) | 350 |
| Total power consumption of the whole systems(kw) | 80 |
| The temperature of de-icing system(℃) | 15~25 |
| Tray material | Aluminum |
| Tray quantities(pcs/batch) | 480 |
| Trolley material | Stainless steel |
| Trolley quantities(Pcs/batch) | 8 |
A sample plant of CE certificate fruit freeze drying equipment

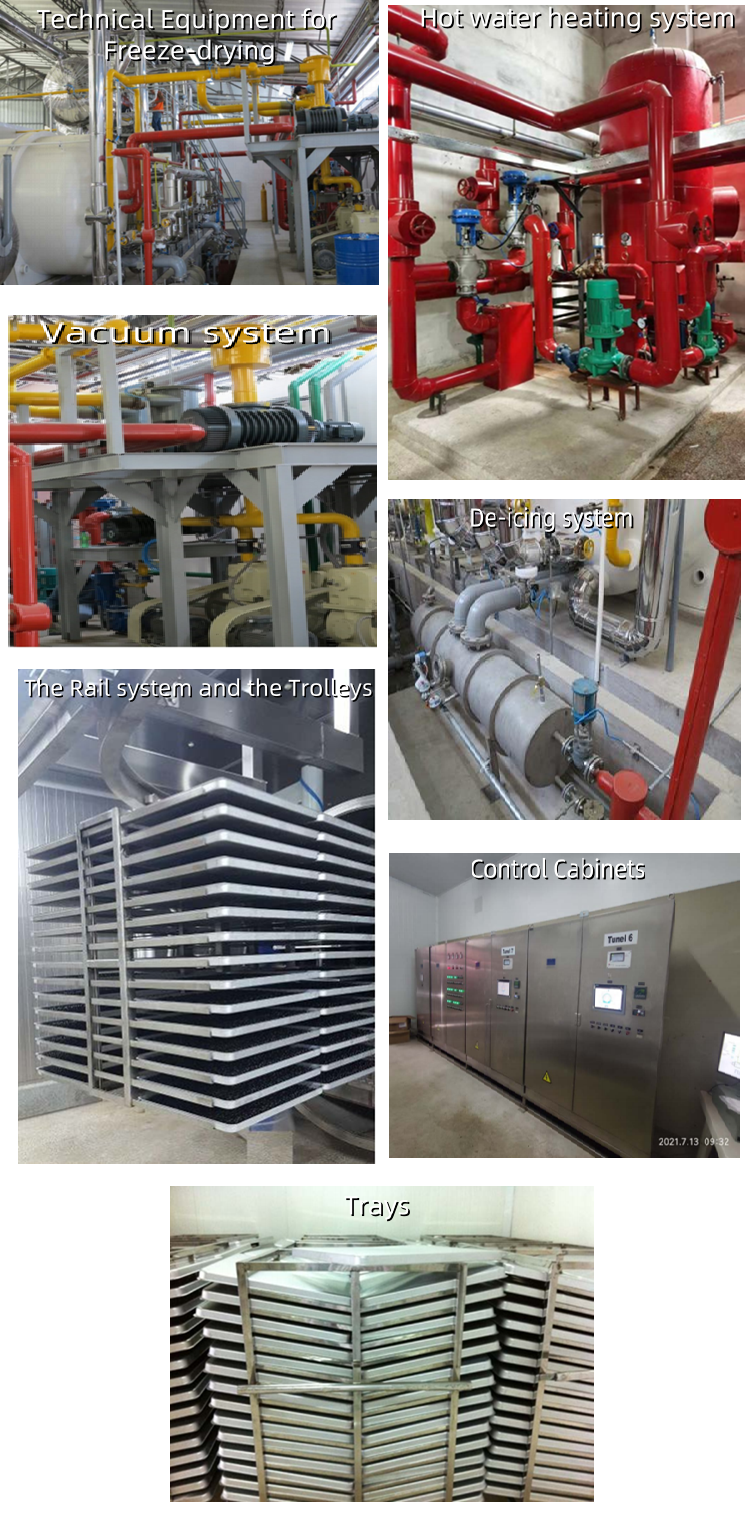

Complete systems of freeze drying equipment for europe
✔ Main Processing Units
Drying chambers with integrated thermal systems
Alternative de-icing for maximum uptime
✔ Critical Subsystems
Vacuum systems (evacuation + maintenance)
Closed-loop ammonia refrigeration
✔ Operational Infrastructure
Industrial control center (CE-certified)
✔ Material Flow Components
Anodized-trays & trolleys
Corrosion-resistant rail system
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of the freeze drying equipment for europe and food individual quick freezing equipment. freeze drying equipment for europe researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and are exported to Central and South America, Southeast Asia, Europe.
The Company has the strong management capacity of set engineering design and installation of CE certificate fruit freeze drying equipment.In these years, freeze drying equipment for europe undertaken by the Company all have been in good quality,with short construction period and low integrated cost, thus winning the users' praise and recognition.
Our main clients of Freeze-drying equipment:MEIJI FOODS ,AJINOMOTO,EIYOH FOODS ,C.Y. FOODS ,Fruitful etc.
FAQ
Freeze-Drying Solutions by Dalian Iceberg
✔ Industrial-Scale Freeze Dryers
Ideal for large batches with continuous drying & efficient de-icing.
Sizes: A50–A200 (expandable options).
✔ Pilot Freeze Dryers
Compact & reliable for R&D or small production.
Standard: A5–A30 | Custom designs supported.
Need a specific configuration? Contact us!
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
