Key Benefits of batch freeze dryer
-Low-Temperature Preservation: Prevents thermal degradation, maintaining bioactive compounds (e.g., proteins, vitamins, and volatiles).
-Minimal Structural Damage: Sublimation of ice under vacuum preserves cellular integrity, avoiding shrinkage or hardening.
-Oxidation & Microbial Stability: Near-elimination of water inhibits enzymatic reactions and microbial growth, extending shelf life without preservatives.
-High Rehydration Capacity: Open porous matrix enables rapid and complete water restoration, approximating fresh material properties
A complete Fruit freeze dryer plant
1) Drying chambers of batch freeze dryer
2). Hot water system
3). Vacuum system with units for initial evacuation and vacuum maintaining
4). Ammonia circulation system
5). Alternative de-icing system for batch freeze dryer
6). Pneumatic system
7). Cooling system (cooling tower)
8). Control center with control panels and computer for Fruit freeze dryer
9). Freezing tunnels for Large vacuum freeze dryer
10). Rail system
11). Trolleys
12). Trays
13). Connecting pipes, pipe fittings and valves for batch freeze dryer systems
14). Cables, wires, shielded control lines, etc. for batch freeze dryer systems
We can also add other Fruit freeze dryer according to customer's request.

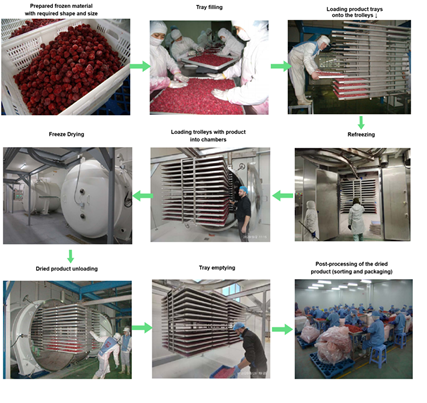

The production process of Fruit freeze dryer plant
Technical data of Fruit freeze dryer
Energy-smart Fruit freeze dryer twin chambers can save 30% energy consumption.
Advantage of alternative vapor trap for batch freeze dryer
Vapor trap is built into the bottom of the batch freeze dryer drying chamber and is equipped with a double steam condenser for continuous deicing (CDI).
During the whole freeze-drying process, When the right condenser in the chamber begins to melt ice, the sealing door plate of the condenser in the chamber moves from the left side to the right side to close the right condenser, and the left condenser communicates with the chamber for water vapor capture. The de-icing tank connects the negative pressure water vapor on the right side of the chamber into the right condenser which has been closed by the sealed door, and melts the thin ice collected on the bundle into water, which flows into the de-icing tank through the lower part of the same pipeline. After the right condenser completes the ice melting, it turns to the left side to achieve the alternating ice melting of the two condensers. During the whole freeze-drying process, no additional time is required to melt the ice individually, which helps to increase the capacity of production.
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is a leading manufacturer of batch freeze dryer (FD) and individual quick freezing (IQF) equipment, integrating R&D, production, and engineering services. Our technology, optimized with global expertise, delivers high efficiency, low operational costs, and rapid project execution—trusted by clients across China and internationally, including to Europe, Central America, Southeast Asia
"Quality Driven, Integrity Rooted." We partner with industries worldwide to pioneer sustainable freezing solutions.
CE Certification for Fruit freeze dryer
FAQ
How soon can we respond to the customer's inquiry?
Within 24 hours.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
