Applications of Freeze-Drying
1-The excellent quality of freeze-dried food makes freeze-dried food a huge market temptation. Freeze drying is considered the best way to produce high quality dry food.
2- However, compared with other dehydration methods, freeze-drying has low productivity, high energy consumption, and therefore high production costs. People call freeze-dried products as four high products, namely high investment, high cost, high quality and high price. With the increase of people's income and the improvement of living standards, the freeze-dried products market has been growing continuously.
3- Freeze-drying is widely used in the field of food processing. Meat, seafood, fruits, vegetables, dairy products, eggs, spices, coffee, tea, beverages and other food raw materials can be freeze-dried.
Technical details of Meat vacuum freeze dryer
Model A series -standard type-meat batch freeze dryer
| Specifications | Standard type for industrialized production | |||||
| Model | A25 | A50 | A75 | A100 | A125 | A200 |
| Loading capacity (kgs/batch) | 330 | 660 | 990 | 1320 | 1650 | 2640 |
| Nominal total loading area of heating plates(㎡) | 25 | 50 | 75 | 100 | 125 | 200 |
| Max.capacity of vapor condensing (kg/h) | 57.5 | 115 | 173 | 230 | 280 | 450 |
| Operating temperature of heating plates (℃) | 30~120 | |||||
| Nominal working pressure (Pa) | 30~120 | |||||
| Evacuating time to reach within 133 Pa with empty loading (min.) | 15~20 | |||||
| Required peak cooling capacity at -40℃(kw) | 45 | 85 | 132 | 180 | 217 | 350 |
| Max.vapor consumption of 0.7 MPa (kg/h) | 70 | 135 | 200 | 240 | 400 | 650 |
| Installation power (KW) | 30 | 55 | 68 | 86 | 55 | 80 |
The type and size of Large meat vacuum dryer which we supply
We Dalian Iceberg produce and supply Meat freeze dryer with the below types and sizes:
with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapor trapping and de-icing
Sizes: A50, A75, A100, A125 and A200
We also supply combination type for Large meat vacuum dryer:
Size:2xA50, 2XA75, 2XA100,2XA125 and 2XA200
Size:4XA50, 4XA75, 4XA100,4XA125 and 4XA200
The scope of supply of meat batch freeze dryer

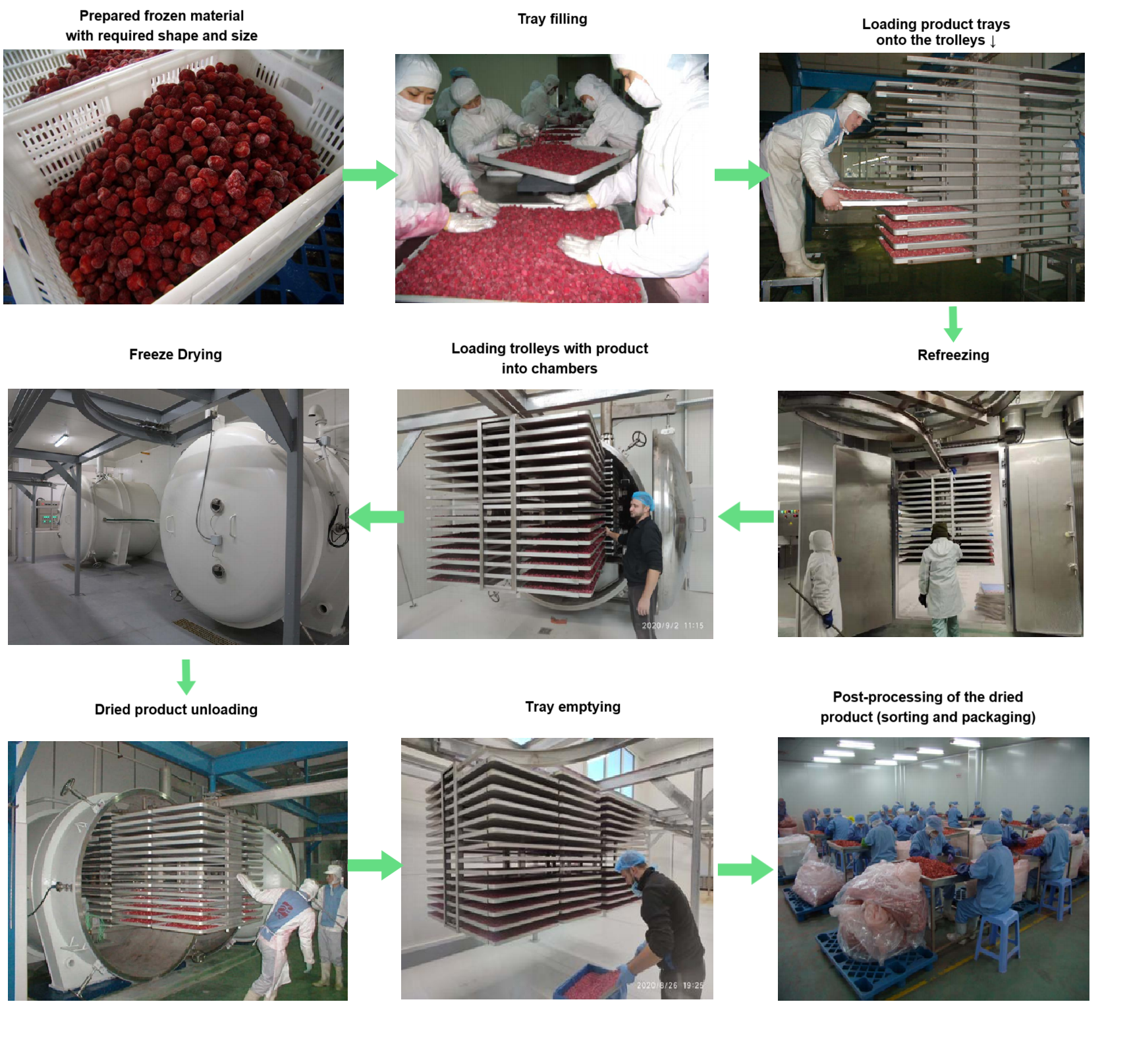

Working process of meat batch freeze dryer
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of Meat batch freeze dryer and food individual quick freezing equipment. Meat vacuum dryer researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and are exported to Central and South America, Southeast Asia, Europe.
The Company has the strong management capacity of set engineering design and installation of Meat vacuum dryer.In these years, Meat vacuum dryer undertaken by the Company all have been in good quality,with short construction period and low integrated cost, thus winning the users' praise and recognition.
Our main clients of Meat batch freeze dryer:MEIJI FOODS ,AJINOMOTO,EIYOH FOODS ,C.Y. FOODS ,Fruitful etc.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours

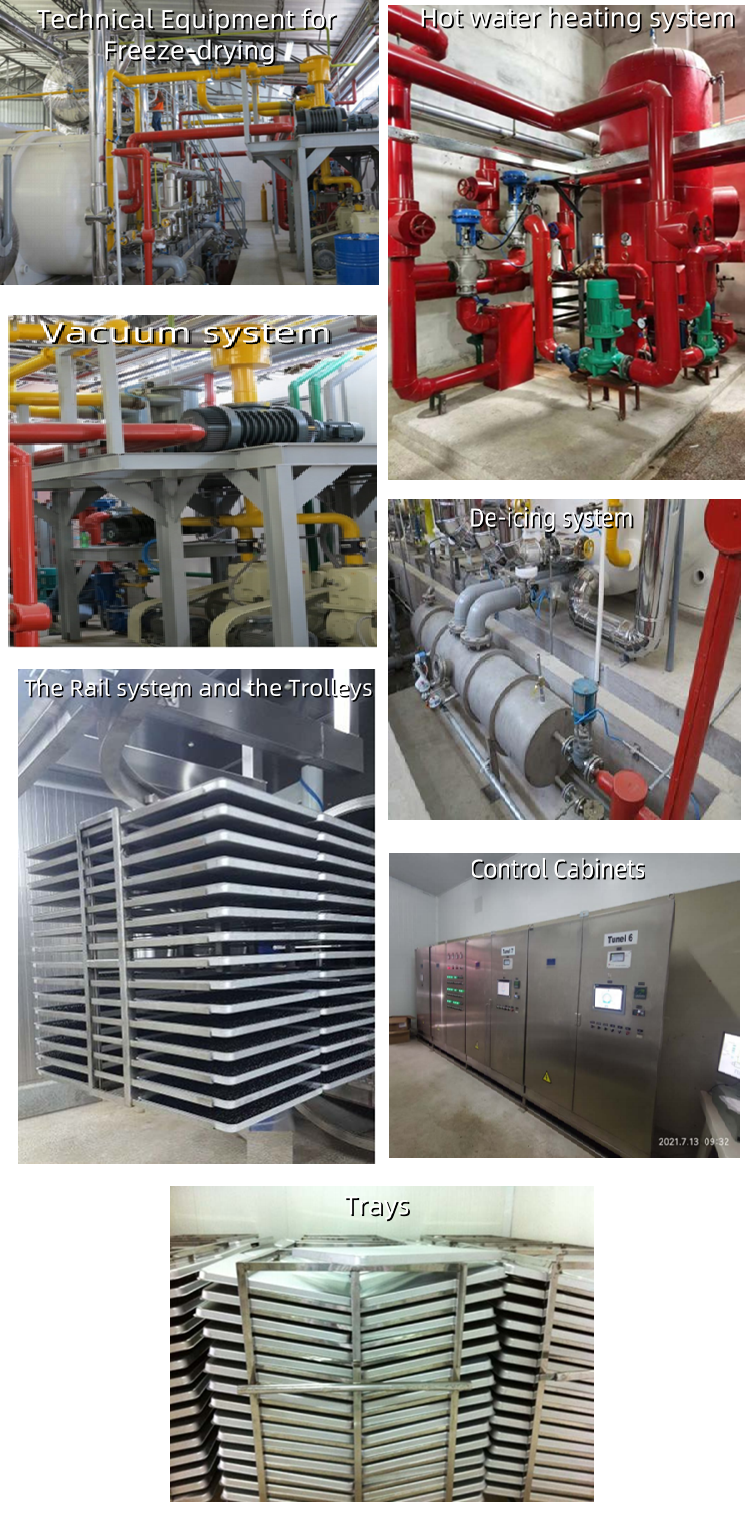

The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
