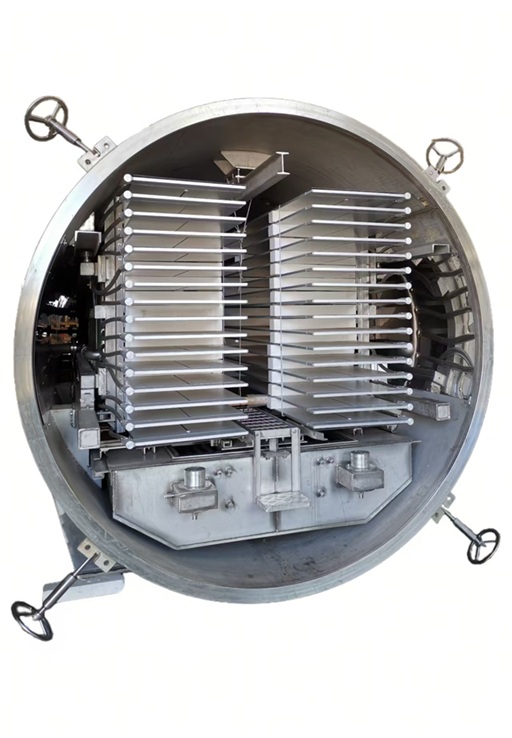

Tray freeze-drying equipment:

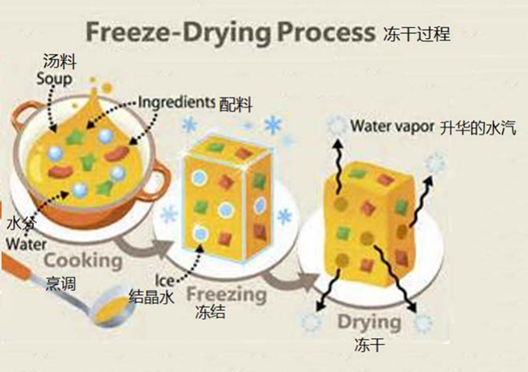

General Principles of Freeze-Drying of Tray type freeze-drying equipment
Freeze-drying is to pre-freeze substances containing a large amount of water (such as: fruits, vegetables, meat products, Chinese soup such as egg drop soup, plasma, concentrated fruit pulp, liquid protein, pharmaceuticals, etc.) to crystallize the free water in the substances, and then sublime the crystal water in the substance under high vacuum conditions, and then remove part of the adsorbed water in the substance after the sublimation of the crystal water is completed, and finally obtain a dry product with a residual water content of about 1-4%.

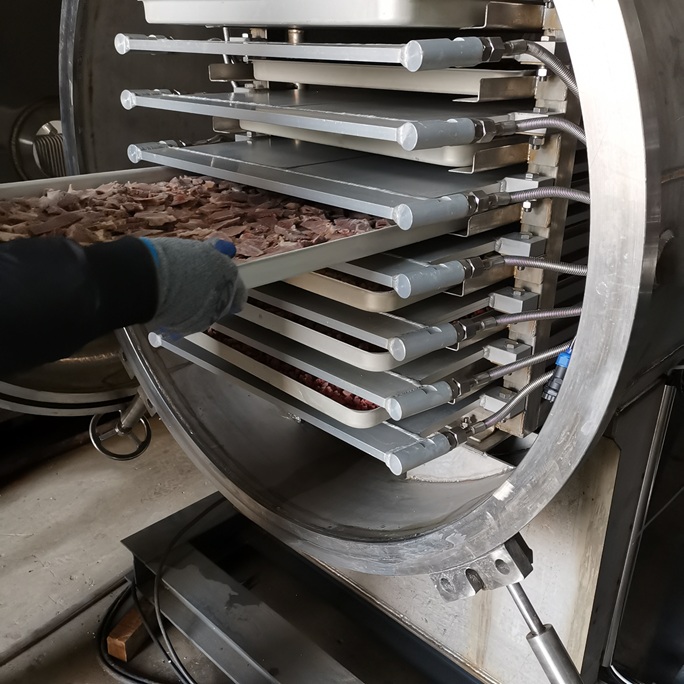

The Characters of the Freeze-Dried Product which made by Tray freeze-drying equipment
Frozen products are dried under vacuum, ensuring that the inherent solvents in the product (i.e. water) are removed as vapor. This preserves the overall product structure and size, as well as all nutrients, flavors, and colors.
The technical data of Model A series- Tray batch freeze-drying equipment
| Specifications | Unit | Combination type for industrialized production | |||||
| Model | 2XA25 | 2XA50 | 2XA75 | 2XA100 | 2XA125 | 2XA200 | |
| Loading capacity | kg/batch | 660 | 1320 | 1980 | 2600 | 3300 | 5280 |
| Nominal total loading area of heating plates | ㎡ | 50 | 100 | 150 | 200 | 250 | 400 |
| Max.capacity of vapor condensing | kg/h | 115 | 230 | 350 | 460 | 560 | 900 |
| Operating temperature of heating plates | ℃ | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
| Nominal working pressure | Pa | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
| Evacuating time to reach within 133 Pa with empty loading | min. | 15~20 | |||||
| Required peak cooling capacity at -40℃ | kw | 80 | 158 | 240 | 320 | 360 | 650 |
| Max.vapor consumption of 0.7 MPa | kg/h | 120 | 220 | 360 | 480 | 700 | 1150 |
| Installation power | kw | 50 | 89 | 90 | 115 | 115 | 165 |

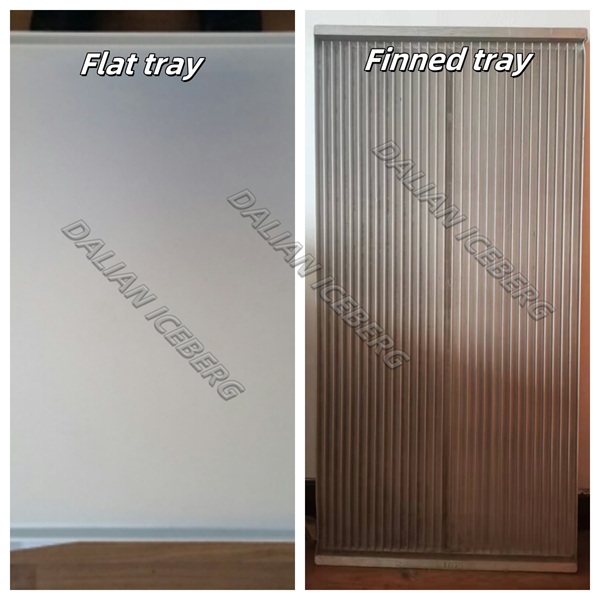

We offer two types of Freeze-drying trays:
Flat tray and finned tray,the both trays size are L678*W568*H30~40mm or L720*W568*H30~40mm

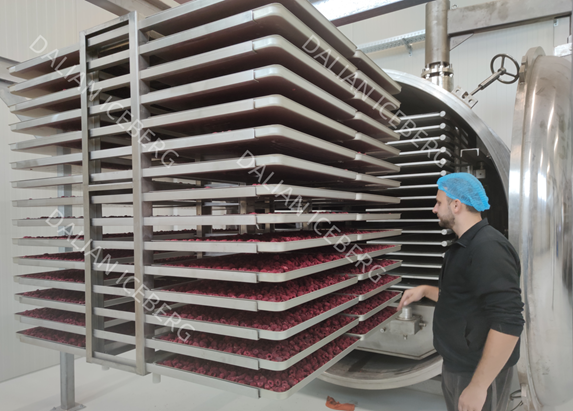

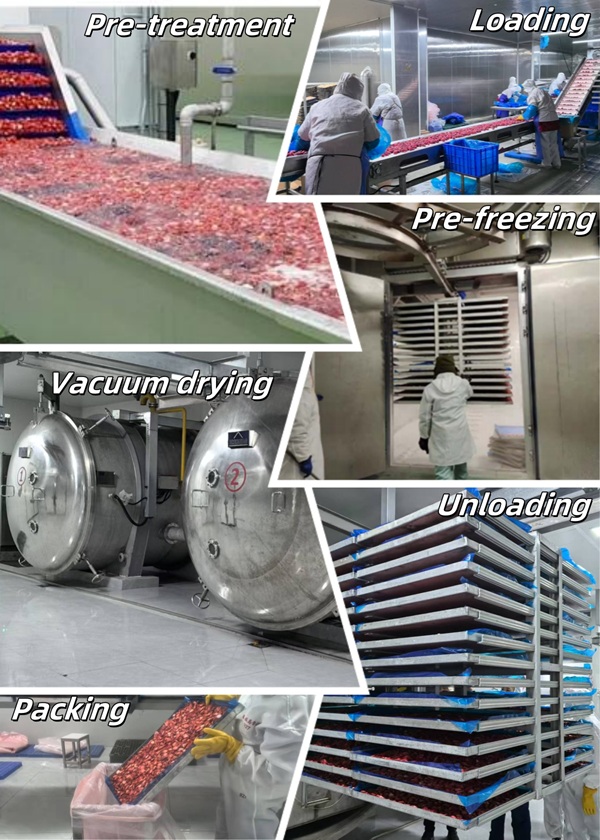

Tray batch industries of freeze dried strawberrys process

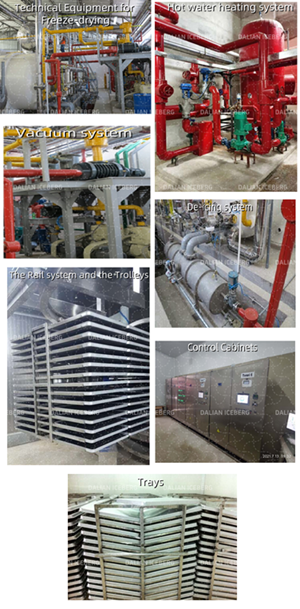

Complete systems of Food And Beverage Batch Freeze Dryer
✔ Main Processing Units
Drying chambers with integrated thermal systems
Alternative de-icing for maximum uptime
✔ Critical Subsystems
Vacuum systems (evacuation + maintenance)
Closed-loop ammonia refrigeration
✔ Operational Infrastructure
Industrial control center (CE-certified)
✔ Material Flow Components
Anodized-trays & trolleys
Corrosion-resistant rail system
Company profile
Dalian Iceberg Freeze Drying Technology Co., Ltd. is specialized in the research, design and manufacture of the Tray batch freeze-drying equipment and food individual quick freezing equipment. The Food and beverage batch industries of freeze dryer researched by the Company with foreign advanced technology has reached the international advanced level. The Company's products scatter about the whole country, and are exported to Europe, Central America, Southeast Asia and other countries.
FAQ
How long is the production time of Tray freeze-drying equipment?
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Retains nutrients: Freeze-dried food retains up to 97% of its nutrients, including vitamins, minerals, and antioxidants. Long shelf life: Freeze-drying removes the potential for bacterial growth, so freeze-dried food can last for years. Maintains flavor and texture: Freeze-drying preserves the original shape, flavor, and texture of food. Sustainable: Freeze-drying reduces food waste and transportation and storage costs.
Freeze drying works by first freezing a substance, then lowering the pressure around it to a vacuum, which allows the frozen water to directly transition from a solid (ice) to a gas (water vapor) through a process called sublimation, effectively removing the water content without going through a liquid phase, thus preserving the material's structure and properties; this is often used to preserve food, pharmaceuticals, and biological samples by significantly extending their shelf life.
We Dalian Iceberg produce and supply freeze drying equipment with the below types and sizes: 1)Type: Industrial scale of freeze dryers with internal assembly of vapor trap(s) with separate condensers performing the functions of alternative vapour trapping and de-icing Sizes: A50, A75, A100, A125 and A200 2)Type: Pilot Freeze-dryers with one-time condenser Size: A5, A10, A20, A30 We can also develop other model of pilot freeze-dryers according to customer’s demands
It is 120-150 days in Europe and the United States, and 90-120 days in other regions.
Within 24 hours
The following 14 items of supplies are included in the contract price offer: 1) Drying chambers (with already integrated internal packages of the heating plates and the condensers) 2). Hot water system 3). Vacuum system with units for initial evacuation and vacuum maintaining 4). Ammonia circulation system 5). Alternative de-icing system 6). Pneumatic system 7). Cooling system (cooling tower) 8). Control centre with control panels and computer 9). Freezing tunnels 10). Rail system 11). Trolleys 12). Trays 13). Connecting pipes, pipe fittings and valves for systems 14). Cables, wires, shielded control lines, etc. for all systems We can also add other equipment according to customer's request.
